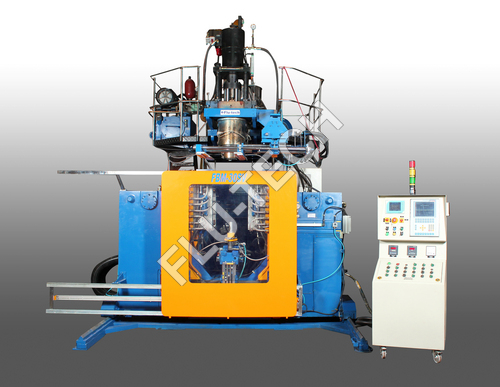

Plastic Extrusion Blow Moulding Machine

Plastic Extrusion Blow Moulding Machine
Plastic Extrusion Blow Moulding Machine
Product Code : 02
Product Description



Ever since the inception of our company, we are instrumental in manufacturing and exporting an unmatched array of Plastic Extrusion Blow Moulding Machine. These machines are designed and manufactured by our professionals as per the set industry norms using supreme grade materials.  Broadly used in different industries including automotive, electrical and engineering for plastic molding application, these machines are available from 5Ltr to 200 Ltr. capacity. This Plastic Extrusion Blow Moulding Machine is offered to clients at reasonable price.

Features

  • Low maintenance

  • Energy efficient

  • Longer operational life



Specifications:

SPECIFICATIONS OF FBM SERIES BLOW MOULDING MACHINES

FLU-TECH

UNIT

FBM-30

FBM-60

FBM-120

FBM-200

A.

MACHINE

1

MAX. VOLUME

LTR

30

60

120

210

2

MIN. MOULD THICKNESS

MM

410

610

710

810

3

APP. WEIGHT OF M/C

KG

12000(15000)

25000

33000

35000

B

CLAMP UNIT WITH TIE BAR LESS DESIGN

1

MAX. CLAMP FORCE

MT

25

40

70

90

2

PLATEN SIZE (H X V)

MM

700 X 720

800 X 800

900 x 900

1000 X 1000

3

MIN. DAYLIGHT

MM

400

600

700

800

4

MAX. DAYLIGHT

MM

900

1200

1400

1700

5

CLAMP STROKE

MM

2 X 250

2 X 300



2 x 350

2 X 450















C

EXTRUDER (GROOVED TYPE)

1

SCREW DIA.

MM

65 (90)

90

90

120

2

L / D RATIO

-

24

24

24

24

3

SCREW SPEED

RPM

12-125

(10-90)

10-90

10-90

6-60

4

PLASTICIZING CAPACITY IN HDPE

KG / HR

100 (150)

150

230

375

5

DRIVE MOTOR

KW

22 (37)

37

45

110

6

HEIGHT ADJUSTMENT MANUAL (MOTORISED)

MM

300

300

400

400

7

LATERAL ADJUSTMENT

MM

150

150

150

150

8

CROSS ADJUSTMENT

MM

±20

±20

±20

±20

9

FEED ZONE COOLING PUMP

KW

0.15

0.15

0.15

0.25



10

HEATING LOAD

KW

18.5 (22.5)

22.5

22.5

27.3

D

ACCUMULATOR HEAD WITH MELT PR. SENSOR  MOUNTING ARRANGEMENT (FIFO)

1

CAPACITY

LTR

2.5 (4)

6.3

12

20

KG

2 (3.2)

5.2

9.6

16

2

MAX. DIE CORE

MM

150 (250)

350

350

400

3

HEATING ZONE

-

4

4

4

5

4

SUPPORT AIR PROVISION

-

YES

YES

YES

YES

5

PARISON CONTROL

POINTS

5 (200)

5 (200)

200

200

MAKE

YUKEN (MOOG)

YUKEN (MOOG)

MOOG

MOOG

6

HEATING LOAD

KW

7.5 (19.7)

24

28

40.17

E

ARTCILE REMOVAL

-

BY HAND OR CARRIAGE MOVEMENT ( ROBOT)

BY ROBOT







F

HYDRAULICS

1

MOULD AND PUSHOUT

TYPE

PQ BLOCK ( PROPORTIONAL AXIAL PISTON PUMP / SERVO DRIVEN PUMP)

PQ BLOCK ( PROPORTIONAL AXIAL PISTON PUMP / SERVO DRIVEN PUMP)

PQ BLOCK ( PROPORTIONAL AXIAL PISTON PUMP / SERVO DRIVEN PUMP/ NITROGEN ACCUMULATOR)





KW

22

30

37

45

2

AUXILIARIES

KW

3.7

5.5

7.5

7.5

3

PARISON CONTROL

KW

5.5

5.5

7.5

11

4

COOLING & FILTERATION

KW

0.37

0.55

0.75

1.1

5

OIL TANK CAPACITY

LTR

500+60

700+60

800+80

1000+100

G

CONTROL PANEL

1

CONTROL TYPE

-

MICROPROCESSOR (PLC)

2

TEMP. CONTROL

-

PID THRU MICROPROCESSOR ( CONTROL MODULES )

3

OPERATING PANEL

-

ON CASTOR WHEEL WITH CONTROL HMI AND PARISON CONTROLLER , PILOT LAMPS, HOOTER

H

POWER SUPPLY

 1

RATING



A.C. 415 V ±5%, 50 Hz, 3 Ph.

2

CONNECTED LOAD

KW

81.1 (113.8)

123.05

148.40

242.32

I

UTILITIES

1

COMPRESSED AIR VOLUME

LPM

600-800

800-1000

1500-1800

2000-2300

AIR PRESSURE

BAR

8

8

8

8

2

NORMAL WATER  @5BAR

LPM

60

80

105

130

3

CHILLED WATER @ 5 BAR

LPM

120

140

160

180









*(BRACKETED DIMENSIONS ARE OPTIONALS)

* SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DUE TO    CONTINUOUS R & D



Sr. no.

Standard Features

01

Tie Bar less clamp unit

02

Clamp unit traversing by hydraulic cylinder

03

Higher Clamping force with rigid C- Frame (deflection within 0.2 mm)

04

Both side Rack Pinion for platen synchronization

05

Clamping stroke linear stroke transducer

06

Hydraulic Stretching unit with double stroke blow pin operation

07

Guide Bar for platen

08

Grooved Barrel with intense feed zone cooling with special water pump

09

Normal and chilled water pipe connections  with ball valves

10

Water Cooling Manifold on platens with 6- 10 channels with temperature and pressure indications and ball valves.

11

No Article Take Out Robot. Carriage unit traversing will bring forward the article

12

Grooved Barrel extruder with VFD of ABB make having 150% over load capacity for one minute

13

Spherical Roller Thrust bearing with B10 life of  40000 Hours

14

Extruder plate form with self adjusting ladder

15

Guards for carriage wheel with wipers

16

Bellows for carriage cylinder rod and racks

17

Peppler + Fuchs Proximities

18

Linear Transducers for mould and push out stroke.

19

Siemens Limit Switches

20

Digital pressure transducer for blowing with purging cycle

21

Digital pressure transducer for clamp pressure

22

Extruder drive motor cooling fan safety

23

Fixed Volume pump with PQ block control

24

Power Controlled SSR for heaters for energy saving
